Huebsch Dryer Controls Phase 2 and Phase 3

You are here:
← Back

Mountain Electronics, Inc.

QUICK GUIDES

CHANGING PRICE

VEND PRICE CHANGE

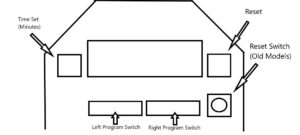

  1. Press and release the TIME SET button (push button to the left of the display).
  2. 10:00” (or other preset time) will appear on the display. This is the time in minutes.
  3. Press HIGH TEMP (+) or LOW TEMP (-) to change the time.
  4. Press and release the TIME SET button to save this number and turn the display off.



ADDITIONAL TIME

  1. Move switch # 4 on the left bank of dip-switches to the “on” position.
  2. 10:00” (or other preset time) will appear on the display. This is the additional time in minutes.
  3. Press HIGH TEMP (+) or LOW TEMP (-) to change the time.
  4. Move switch # 4 back to the “off” position to save this value and turn the display off.



LEFT PROGRAM SWITCHES      Factory Settings         RIGHT PROGRAM SWITCHES

  1. Cool Down Time (minutes) 1.0 1. Normal / Diagnostics
  2. Coin Accepter Ratio 1.0 2. N/A
  3. Coin Units to Start 1.0 3. Charged Dry / Free Dry
  4. Additional Time (minutes) 10:00 4. Beeper Off / Beeper On
  5. Low Temperature (°F) 130 5. N/A
  6. Permanent Press Temperature (°F) 160 6. Fahrenheit / Celsius Degrees
  7. High Temperature (°F) 190 7. N/A
  8. Audit (Coin / Cycle Count) 8. 60 Hertz / 50 Hertz



Note: When changing dip switch settings, flip the switch up (“on”), adjust the value using HIGH TEMP (+) or LOW TEMP (-), then flip the switch down (“off”) to save the new value.









Special Case:



$0.25 for 10 min

$0.10 for   4 min



  1.  Move switch # 2 on the left bank of dip-switches to the “on” position.
  2.  Change value to 2.5
  3. Return switch # 2 on the left bank of dip-switches to the “off” position.



  1. Move switch # 4 on the left bank of dip-switches to the “on” position.
  2. Change value to 4:00
  3. Return switch # 4 on the left bank of dip-switches to the “off” position.



  1. Press and release Time Set button (pushbutton located left of display)
  2. Set time to 4:00
  3. Press Reset button
